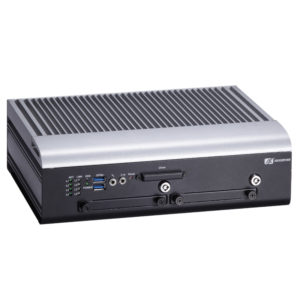

tBOX322-882-FL

CPU: Intel® Core™ i7-4650U or i3-4010U, DDR3L-1600 4 GB or 8 GB DRAM

LxBxH: 244 x 180.5 x 65.1 mm

Category:

Description

Produktblad tbox322-882-fl

Features

  • EN 50155 and EN 50121 certified
  • Fanless design and wide temperature range from -40°C to +70°C (EN 50155 class TX)
  • Comply to fire protection of railway vehicles Europe standard PrCEN TS 45545-2
  • 4th gen Intel® Core™ i7 or Core™ i3 processor
  • DDR3L-1600 4GB or 8GB onboard
  • Isolated RS-232/422/485 and DIO
  • USB 3.0 and SATA 3
  • 1 removable & lockable 2.5” SATA HDD and 1 CFast™/mSATA
  • 3 internal PCIe Mini Card slot and 2 SIM slots
  • Lockable M12 LAN, audio, power and USB connectors
  • Suspension designed for HDD

Introduction

The tBOX322-882-FL fanless railway embedded PC is based on 4th generation Intel® Core™ i7 or i3 processor with wide temperature capability from -40°C to +70°C. Certified with EN50155, EN50121 and complied with the standard of railway vehicles fire protection – PrCEN TS 45545-2, the railway PC is well suited for IoT & M2M-related applications such as onboard devices controller, train management, gateway, security surveillance and rolling stock environments. To keep all cables tightly secured, the railway pc has standard M12 connectors for Ethernet ports, USB ports, power input, and audio port. What is notable is that the graphics performance is now merely up to two times higher than previous generation, with the latest quad core processor, allowing faster and better information display.



CPU
  • Intel® Core™ i7-4650U (1.7 GHz up to 3.3 GHz) or Intel® Core™ i3-4010U (1.7 GHz)
Chipset
  • SoC integrated
System Memory
  • DDR3L-1600 4 GB or 8 GB DRAM
BIOS
  • AMI
COM
  • 2 x isolated RS-232/422/485
USB
  • 1 x M12-type USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x M12-type 10/100/1000Mbps
Display
  • 1 x HDMI
  • 1 x DVI-I
CANbus
  • N/A
Digital I/O
  • 1 x isolated DI/DO (6-IN/2-OUT)
Audio
  • Mic-in/Line-out (M12 type)
Storage
  • 1 x 2.5” SATA HDD (Removable and with lock protection)
  • 1 x CFast™/1 x mSATA
Expansion
  • 3 x PCI Express Mini Card
  • 2 x SIM card
Others
  • 1 x VDC power input connector (M12 connector)
  • 1 x reset switch
  • 1 x power switch
  • 4 x antenna opening
Power Supply
  • Power input : 14VDC ~ 32VDC (isolation)
  • Typical : 24VDC
Power Consumption
  • 1.8A @ 24V
Watchdog Timer
  • 255 levels, 0 ~ 255 sec./min.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -40°C ~ +70°C (-40°F ~ +158°F) W/T SSD
  • -25°C ~ +55°C (-13°F ~ +131°F) W/T HDD
Relative Humidity
  • 5% ~ 95%, non-condensing
Vibration
  • 3 Grms with SSD or CFast™ (5-500Hz, X, Y, Z directions)
  • 2 Grms with HDD (5-500Hz, X, Y, Z directions)
Shock
  • N/A
Dimensions
(W x D x H)
  • 244 x 180.5 x 65.1 mm (9.6″ x 7.1″ x 2.56″)
Weight (net/gross)
  • 2.94 kg (6.48 lb)/ 3.94 kg (8.68 lb)
Certifications
  • CE (Class A), EN50155, EN50121 certifed
  • EN45545-2, EN60950-1 compliant
EOS
  • WES 8, WES 7, Linux
Mounting
  • Wall mount
