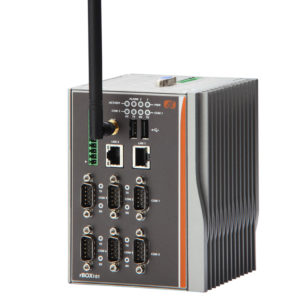

rBOX630

CPU: i.MX 6, Cortex-A9 RISC, 1G DDR3 Onboard

LxBxH: 55 x 155 x 110 mm

Description

Produktblad rbox630

Features

  • Fanless design
  • RISC-based module (i.MX 6) processor
  • 1 GB DDR3 SDRAM onboard
  • 4 GB eMMC onboard
  • Completed industrial AP development software
  • Wide range DC power input (12 – 48V) with terminal block
  • Ready-to-run embedded Linux operating system
  • Wide temperature operation of -40°C ~ +70°C



CPU
  • i.MX 6, Cortex-A9 RISC CPU, 800MHz
Chipset
  • SoC integrated
System Memory
  • 1G DDR3 Onboard
COM
  • 4 x RS-232/422/485
USB
  • 1 x USB 2.0 OTG
Ethernet
  • 1 x isolated 10/100/1000 Mbps
  • 1 x isolated 10/100 Mbps
PoE
  • N/A
CANbus
  • 2 x CAN bus 2.0 B (Phoenix connector)
Digital I/O
  • 1 x isolated DIO (8-IN/ 8-OUT )
Analog Input
  • N/A
Display
  • 1 x HDMI (Support screw lock)
Wireless
  • 1 x PCI Express Mini Card socket (supports USB interface) with 1 x SIM socket by outside
  • access and is easy plug/pull.
  • 1 x PCI Express Mini card socket (supports USB & PCIe interface) with 1 x SIM socket by inside
Storage
  • 1 x eMMC 4 GB onboard (for boot disk)
  • 1 x SDHC Card (easy-to-access, for store only.)
Others
  • N/A
Power Supply
  • 12-48VDC
Watchdog Timer
  • 1 sec, 255 levels
Construction
  • Extruded aluminum and heavy-duty steel, IP30
Operating Temperature
  • -40°C ~ +70°C (-40°F ~ +158°F)
Relative Humidity
  • 10% ~ 95%
Vibration
  • 5G @ 10-150Hz, amplitude 0.35ms
Dimensions
(W x D x H)
  • 55 x 155 x 110 mm (2.16″ x 6.10″ x 4.33″)
Weight (net/gross)
  • 0.9 kg (2 lb)/1.3kg (2.87 lb)
Certifications
  • FCC Part 18
  • Heavy Industrial CE
EOS
  • Linux
Mounting
  • Din rail
  • Wall mount
