Ergotron Neo-Flex® Ceiling Mount

Neo-Flex® Ceiling Mount

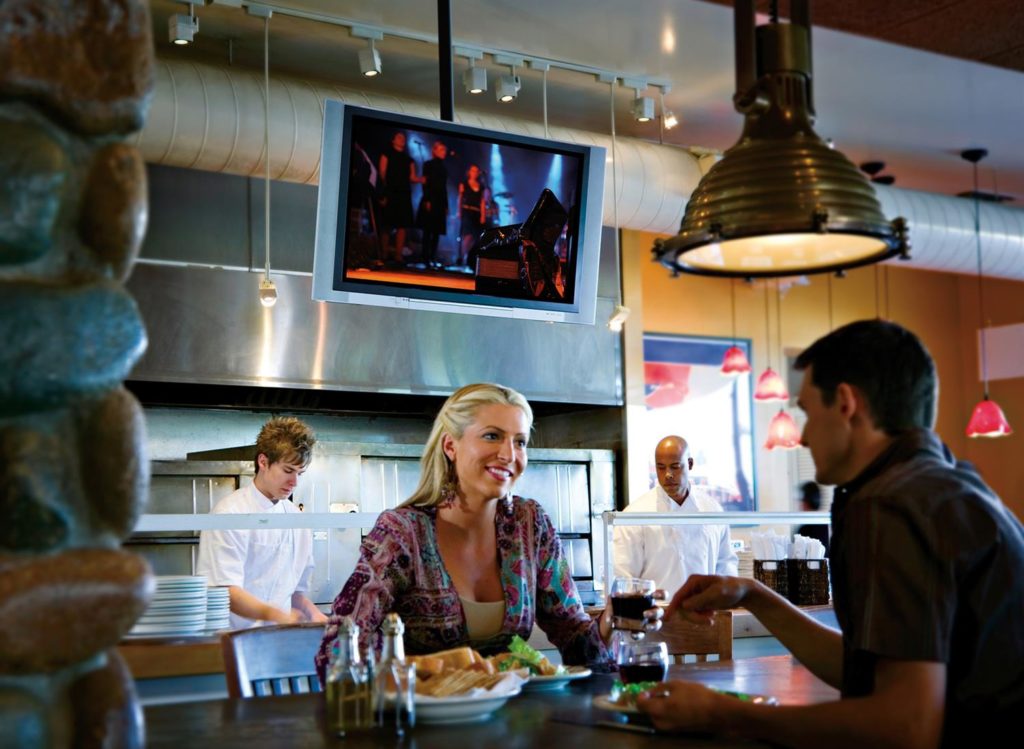

A sturdy single flat panel ceiling mount, with universal adapter, that’s ideal for any ceiling application—whether TV viewing or digital signage.

Part Number: 60-842-223

  • Install display in either portrait or landscape orientation
  • Includes universal adapter for greater panel compatibility
  • Tension adjustment for variable tilt or locking pin mechanism for precise positioning in 5º increments
  • Integrated cable management routes cables through NPT pipe and ceiling plate
  • Lift n’ Lock™ for quick installation
  • Post-install height adjustment and leveling
  • Anti-theft security feature



  • Screen

    32” – 65

  • Capacity

    125 lbs
    56.7 kg

  • Lift

  • Tilt

    25°

  • Pan

  • Rotation

  • Vesa

    MIS-E/F*

  • Warranty

    3 years

  • Part Number: 60-842-223
  • Description: Neo-Flex® Ceiling Mount for Single Large Display (black)
  • Includes ceiling plate, tilt hanger, adaptor plate, universal adaptor, 24″ 1.5″-diameter NPT pipe, installation and Grade 5 hardware kits
  • † Display can be installed in either a landscape or portrait orientation
  • * Mounting holes must fit within spacing range below: horizontal = 200 mm (min.) to 660 mm (max.); vertical = 100 mm (min.) to 450 mm (max.)
  • UL certified and listed to UL Standard 2442. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)
  • Full compliance with RoHS directive
  • Shipping Dimensions: 24.4″ x 20.9″ x 3.9″ (62 x 53 x 10 cm)
  • Shipping Weight: 24 lbs (10.9 kg)
  • Warranty: Three (3) years
